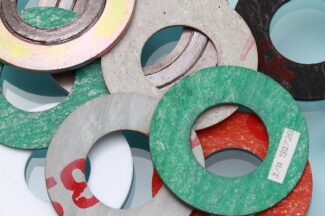

Gaskets are critical components in transformers, serving as seals to prevent leakage of insulating oil, gases, and moisture. The selection of gasket material is essential to ensure long-term reliability, safety, and optimal transformer performance. Different types of gasket materials are used depending on factors like operating temperature, chemical compatibility, mechanical stress, and environmental exposure. Below is an overview of the most common transformer gasket materials, along with their pros and cons.

1. Rubber Gaskets

Types:

• Nitrile Rubber (NBR)
• Ethylene Propylene Diene Monomer (EPDM)
• Silicone Rubber

Pros:

• Excellent sealing properties: Provides tight seals for oil-filled transformers.
• Flexibility: Can accommodate slight flange misalignments.
• Chemical resistance: NBR is resistant to transformer oils and hydrocarbons; EPDM resists ozone, weathering, and aging.
• Temperature tolerance: Silicone can operate at higher temperatures than NBR or EPDM.

Cons:

• Limited high-temperature endurance (NBR, EPDM): Can degrade under prolonged exposure to heat above 120–150°C.
• Swelling in certain oils: Some rubbers may swell over time if incompatible with certain synthetic oils.
• Compression set: Rubber can permanently deform under continuous pressure, reducing sealing effectiveness over time.

2. Cork and Rubber Composite Gaskets

Description:

Cork is mixed with rubber to create a resilient material that can compress and conform to surface irregularities.

Pros:

• Good compressibility: Ensures effective sealing even on imperfect flange surfaces.
• Oil resistance: Rubber component improves resistance to transformer oils.
• Cost-effective: Relatively inexpensive compared to specialty elastomers.

Cons:

• Limited chemical resistance: Can degrade with prolonged exposure to some oils or solvents.
• Lower mechanical strength: Not suitable for high-pressure or high-temperature applications.
• Moisture absorption: Cork can absorb moisture, potentially leading to gasket failure.

3. Paper-Based or Cellulose Gaskets

Description:

Made from compressed cellulose or paper impregnated with oil-resistant resins. Common in older transformer designs.

Pros:

• Excellent compatibility with mineral oil: Minimal chemical reaction over time.
• Low cost: Very economical for conventional transformers.
• Good initial sealing: Provides effective initial sealing in flat flange joints.

Cons:

• Poor durability under thermal cycling: Can become brittle over time.
• Limited elasticity: Does not accommodate flange movement well.
• Prone to moisture absorption: Reduces sealing performance if the gasket gets wet.

4. PTFE (Polytetrafluoroethylene) Gaskets

Description:

PTFE, commonly known as Teflon®, is a high-performance synthetic polymer used for transformer gaskets in harsh conditions.

Pros:

• Excellent chemical resistance: Resistant to virtually all oils, solvents, and most chemicals.
• Wide temperature range: Can operate from -200°C to 260°C.
• Low friction and non-stick properties: Reduces risk of gasket sticking to flange surfaces.
• Long lifespan: Excellent durability under thermal and mechanical stress.

Cons:

• High cost: Significantly more expensive than rubber or paper gaskets.
• Limited compressibility: Requires precise flange design for effective sealing.
• Potential cold flow: Under constant pressure, PTFE can deform slowly over time, reducing sealing effectiveness.

5. Graphite Gaskets

Description:

Made from natural or expanded graphite, often reinforced with a metal or fiber core for structural support.

Pros:

• High-temperature tolerance: Suitable for applications exceeding 400°C.
• Excellent chemical and oil resistance: Ideal for transformer oils and oxidizing environments.
• Good compressibility and recovery: Maintains seal under thermal cycling and vibration.

Cons:

• Higher cost than conventional materials: More expensive than rubber or paper gaskets.
• Brittleness in pure form: May crack without reinforcement.
• Installation sensitivity: Requires careful handling to avoid damage.

Here’s a practical guide linking gasket types to common transformer applications:

Key Considerations:

1. Temperature: High-voltage transformers or those in hot climates require materials like PTFE or graphite to avoid gasket degradation.
2. Oil Type: Synthetic oils may require chemical-resistant gaskets (PTFE) instead of traditional rubber or paper.
3. Flange Design and Movement: Flexible gaskets (rubber, cork-rubber, graphite) help maintain seals under mechanical stress or thermal expansion.
4. Maintenance & Lifespan: High-performance gaskets reduce maintenance frequency, especially in critical power infrastructure.

Conclusion

The choice of gasket material in transformers depends heavily on operational conditions, chemical compatibility, and mechanical requirements. Rubber gaskets are versatile and cost-effective for standard applications, while PTFE and graphite gaskets are preferred in high-temperature or aggressive chemical environments. Cork-rubber composites and paper-based gaskets are often used in legacy or lower-stress applications. Proper selection ensures reliable sealing, reduces oil leaks, and extends transformer life, ultimately enhancing operational safety and efficiency.
